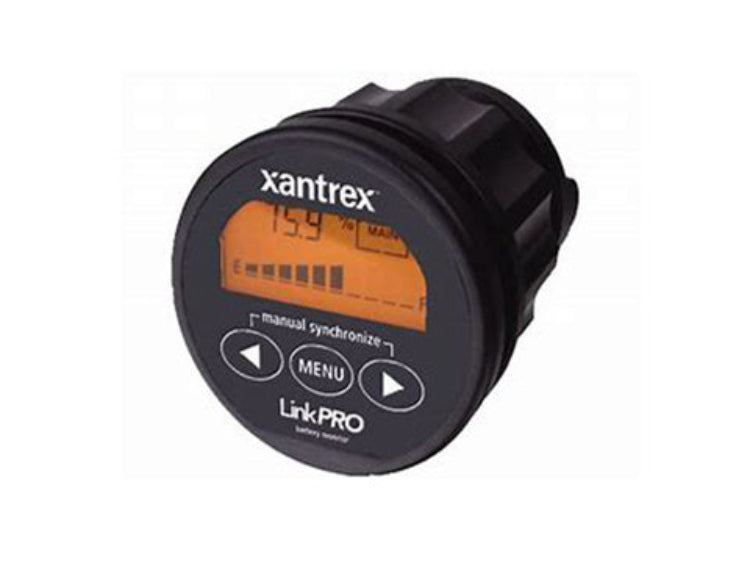

Xantrex Linkpro Battery Monitor

Xantrex Link Pro battery monitor. The LinkPRO can measure currents up to 10,000 Amps. It selectively displays voltage, charge and discharge current, consumed amp-hours, remaining battery capacity and the time remaining of your battery bank. It is equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries. Defining the amount of energy available in a battery is a complex task since battery age, discharge current and temperature all influence the actual battery capacity.

High-performance measuring circuits, along with complex software algorithms, are used to exactly determine the remaining battery capacity. A new shunt selection feature enables the LinkPRO to measure currents up to 10,000 Amps. The LinkPRO selectively displays voltage, charge and discharge current, consumed amp-hours, remaining battery capacity and the time remaining of your battery bank. Using a clear backlit LCD Display and an intuitive user interface, all parameters can be recalled with just a button press. A second battery input is also provided to monitor voltage on a second battery. It is equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries.

It is equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries.

Performance Features:

• Read your battery bank like a fuel gauge

• Provides critical information about the status of your battery bank

• Displays voltage, current, consumed amphours and remaining battery capacity

• Secondary battery bank voltage monitoring

• Auto sensing battery voltage inputs

• Large backlit LCD Display

• Quick nut mounting construction

• Programmable alarm relay

• Shunt selection capability enables flexible system integration

• Splash proof frontpanel

• 500 Amp shunt included

• CE and e-mark certified

• Displays time remaining

• Communication/expansion port

• Stores a wide range of history events in internal memory

• Advanced programmable alarm relay

• Battery temperature sensor input
