Dimensions
Length: 10.0in
Width: 7.0 in
Height: 3.0 in
Weight: 1.2 lbs
Specifications
Document Downloads
No PDF Files
Part #
82-0123-01
$269.98 CAD
Usually Ships in 1-2 Weeks
Eligible for free shipping

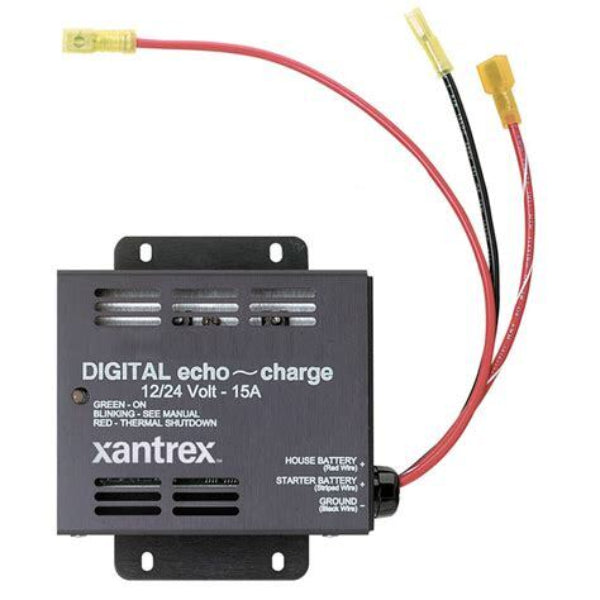

The Xantrex digital echo~charge is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echo~charge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries
• 15 A maximum charge current
• Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
• Automatically switches on/off without affecting the in-house battery bank or over-charging
• Utilizes excess current from the primary charging source
• Built-in thermal and over-current circuits
• Reverse polarity protection
• Easy three wire installation
Weight: 0.544 kg or 1.2 lbs
Dimensions: 25.4 cm X 17.8 cm X 7.6 cm or 10" X 7" X 3"
