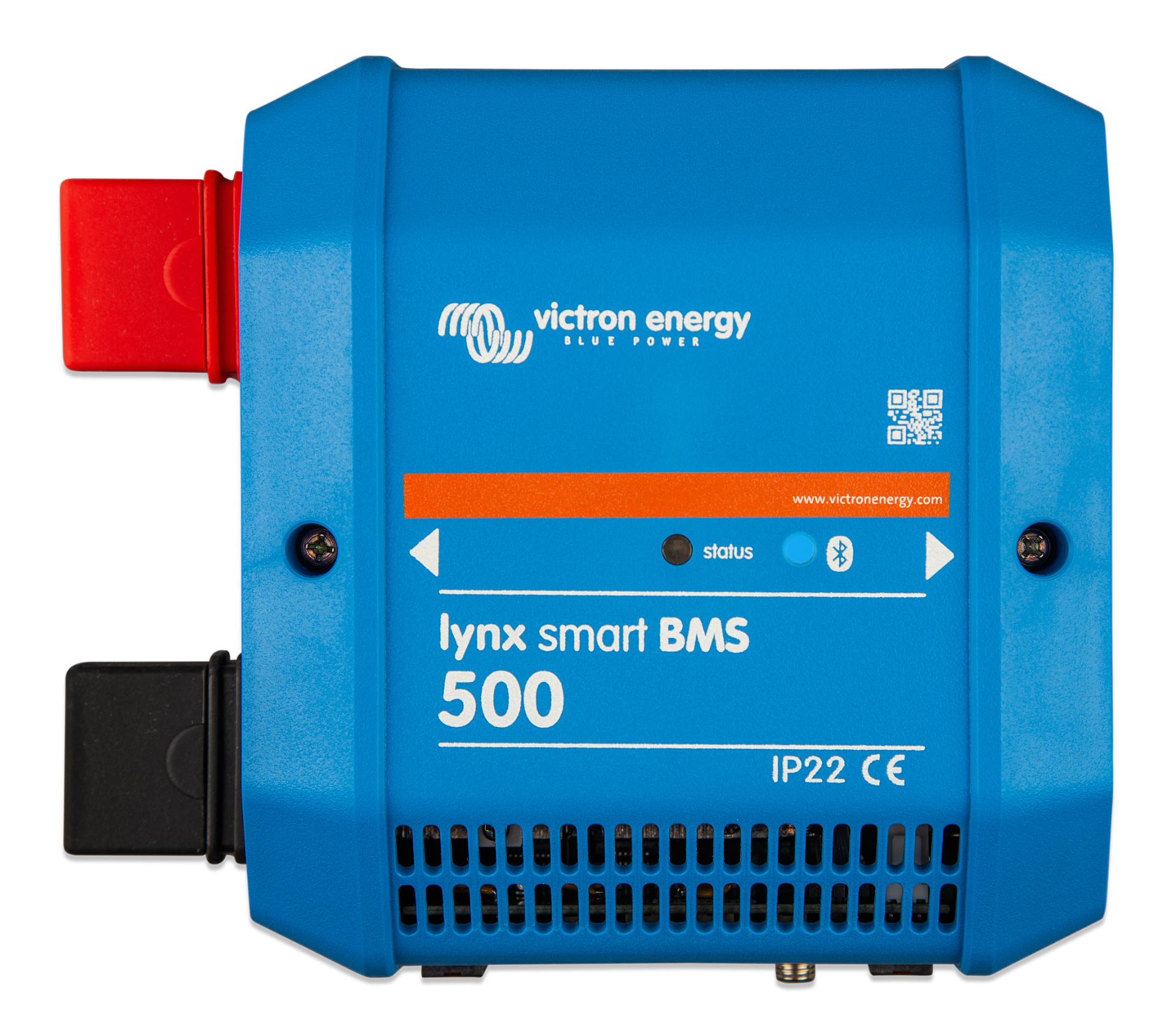

Victron Lynx Smart Bms 500 (M10)

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are:

• Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch

• Battery monitor, indicating state of charge percentage and more data.

• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.

• Bluetooth for use with our VictronConnect App, for setup and monitoring.

• Local and remote monitoring using a Victron GX device, for example the Cerbo GX.

The Lynx Smart BMS is part of the modular Lynx Distribution system.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management. For more information also see the DC Distribution Systems product page.

The Lynx Distribution System consist of the following parts:

• Lynx Power In - A positive and negative busbar with 4 connections for batteries or DC equipment.

• Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse

monitoring.

• Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery

monitoring. It has VE.Can communication for monitoring and setup with a GX device.

• Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor

that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has

Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with

a GX device and the VRM portal.
