Dimensions
Length: 11.41in
Width: 6.69 in
Height: 3.14 in
Weight: 4.62 lbs
Specifications
Document Downloads
Part #
LYN020102010
Sale:$193.55 CAD$227.70 CAD
Usually Ships in 1 Week
Eligible for free shipping

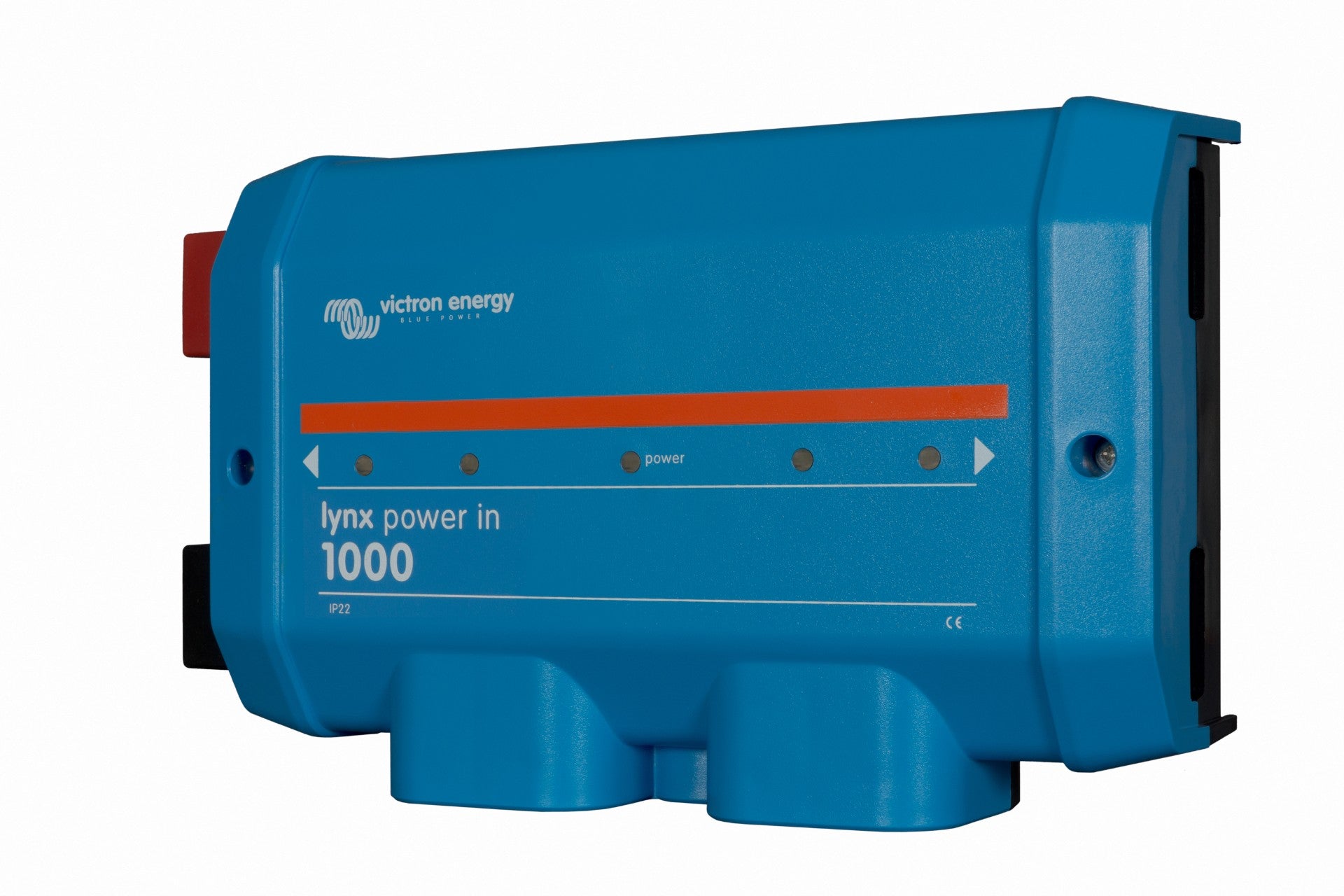

A modular DC busbar, used to connect batteries to the Lynx DC distribution system.
The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is part of the Lynx Distribution system.
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management. For more information also see the DC Distribution Systems product page.
The Lynx Distribution System consist of the following parts:
• Lynx Power In - A positive and negative busbar with 4 connections for batteries or DC equipment.
• Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse
monitoring.
• Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery
monitoring. It has VE.Can communication for monitoring and setup with a GX device.
• Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor
that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has
Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with
a GX device and the VRM portal.
