Dimensions
Length: 11.41in
Width: 6.69 in
Height: 3.14 in
Weight: 4.85 lbs
Specifications
Document Downloads
Part #
LYN060102010
Sale:$276.33 CAD$325.09 CAD
Usually Ships in 1 Week
Eligible for free shipping

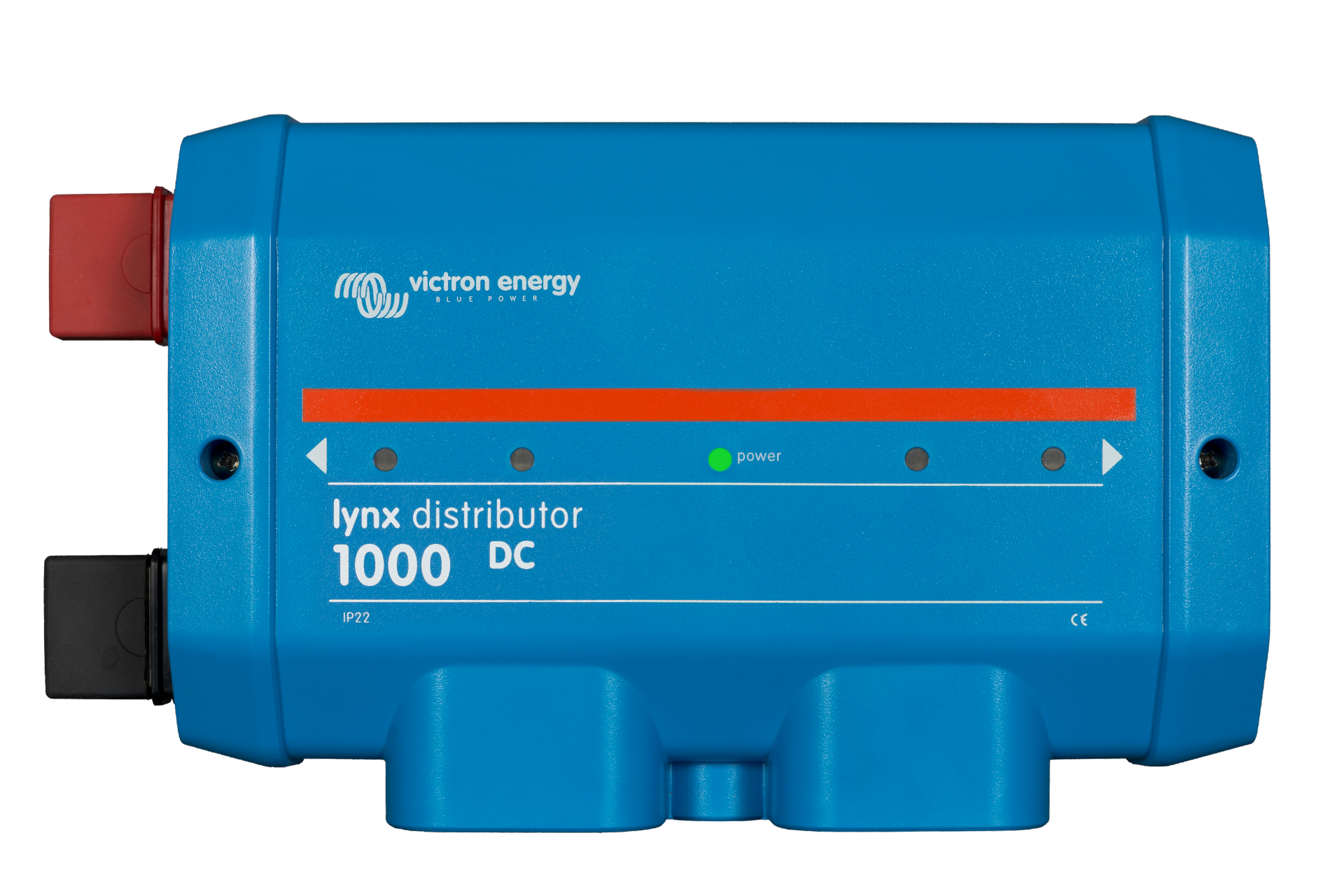

A modular DC busbar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.
The Lynx Distributor contains a positive and a negative busbar. The positive busbar has four fuse protected connections with fuse monitoring. The negative busbar has four connections and a ground connection. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can.
The Lynx Distributor ships together with a 40cm RJ10 cable. This cable provides power to the Lynx Distributor and if connected to a Lynx Smart BMS, is also used to transmit data.
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management. For more information also see the DC Distribution Systems product page.
The Lynx Distribution System consist of the following parts:
• Lynx Power In - A positive and negative busbar with 4 connections for batteries or DC equipment.
• Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse
monitoring.
• Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery
monitoring. It has VE.Can communication for monitoring and setup with a GX device.
• Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor
that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has
Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with
a GX device and the VRM portal.
