Part #
T70162
$4,008.99 CAD
Usually Ships in 1-2 Weeks
Raymarine Autopilot Kit EV-400 Power T70162
The Raymarine EV-400 Inboard Autopilot Kit is designed for large power-driven vessels, with a maximum displacement of up to 77,000 pounds.
The EV-400 Pack controls vessels with any Type 2 to Type 3 Mechanical or Hydraulic Drive Units, purchased separately. See the Specifications Tab for compatible Drive Units.
No muss, no fuss, easy to install and robust - the EV-400 Evolution Power Autopilot Kit combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.
Key Features:
AutomagicTM - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
Easy to install - Freedom from the restrictions of conventional heading sensors. EV-1 Sensor Core can be installed above or below deck. Install upside-down or off the vessel's centerline.
Aerospace technology - 9-Axis precision monitoring of pitch, roll, yaw, and heading
Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster
SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (Actuator Control Unit) and extended SeaTalkng and NMEA2000® networks.
Designed for simplicity, Evolution "AI" Autopilots eliminate the need for complicated setup and calibration. Once the Evolution EV-400 is installed, getting started is as easy as switching the autopilot on. Thanks to the intelligent EV Sensor Core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments.
This innovative breakthrough in autopilot intelligence enables Evolution autopilots to perceive their environment and then instantly calculate and evolve steering commands to maximize performance.
The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

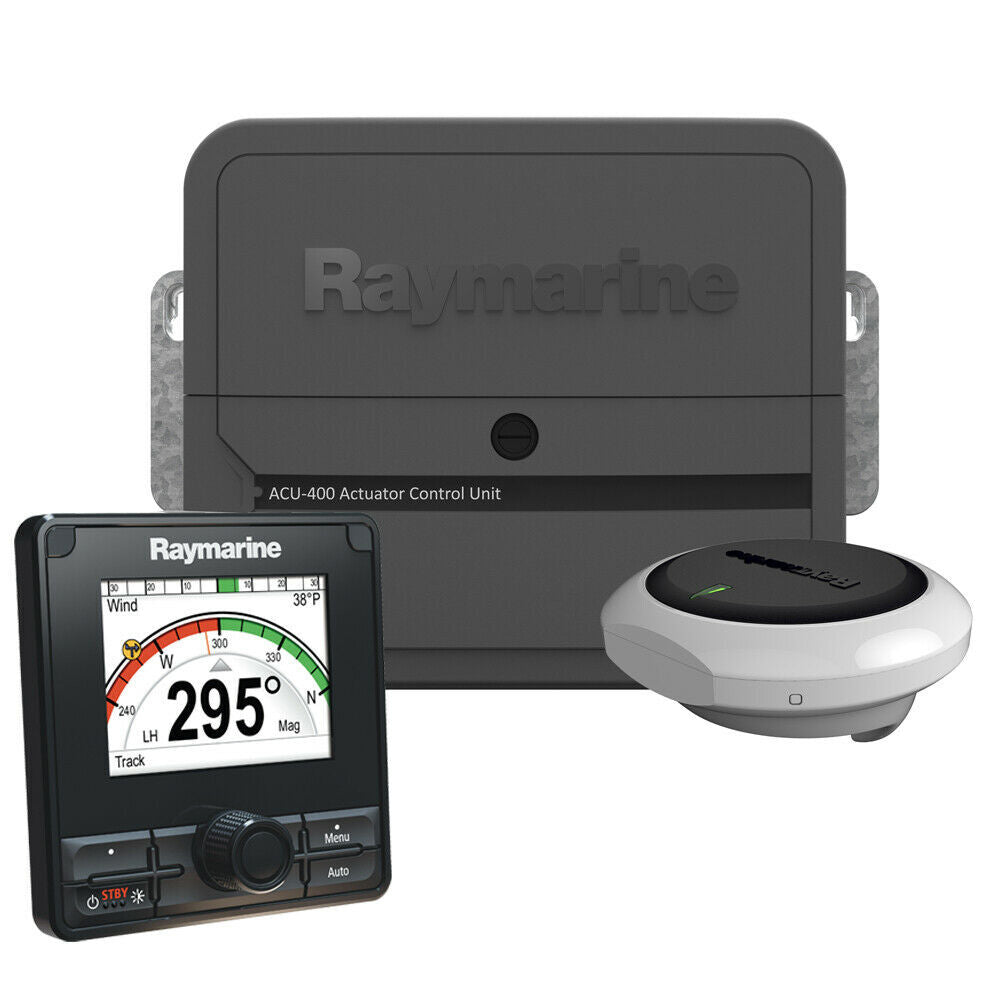

EV-400 Power Pack Includes:
EV-1 Sensor Core
ACU-400 Actuator Control Unit
p70Rs Rotary Control Head
EV-1 Evolution Cabling Kit
Features:
EV-1 Sensor Core
Designed for Evolution mechanical and hydraulic autopilot systems
SeaTalk ng Networking
Enables a single cable connection for power and data to the Evolution ACU and extended SeaTalk ng and NMEA 2000 Networks
ACU-400
Delivers reliable autopilot drive power
Provides power to the SeaTalk ng bus
Connections:
Rudder Reference Sensor
Sleep Switch
Power
Drive Motor
Drive clutch
Ground
Digital Input / Output (DIO)
p70Rs Rotary Autopilot Control Head (Power)
Designed for power craft with push buttons and a rotary control dial.
Advanced LED backlighting offers low power consumption and delivers vibrant color and contrast.
Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.
The p70Rs Control head also features the LightHouse user interface and a startup wizard to help you configure the pilot quickly and easily.
Evolution EV-1 Cabling Kit - Kit contains:
(1) SeaTalk ng Power Cable (0.4m)
(1) SeaTalk ng Backbone Cable (5m)
(1) SeaTalk ng Spur Cable (0.4m)
(1) SeaTalk ng 5-way Connector Block
(2) SeaTalk ng T-piece Connectors
(2) SeaTalk ng Terminators
