Raymarine T70161 EV-400 Pilot w/ p70s "sail" (no drive)

Raymarine T70161 EV-400 Large Sail Autopilot Kit

The Raymarine Autopilot Kit EV-400 is designed for large sailing vessels, with a maximum displacement of up to 44,000 pounds.

The EV-400 kit requires the use of Type 2 or Type 3 Linear Drive, purchased separately.

Cruise - An Evolution Autopilot will take command

No fuss, easy to install and robust - the EV400 Evolution Sail Autopilot Kit combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

Key Features:

AutomagicTM - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections

Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.

Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading

Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster

SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

Designed for simplicity, Evolution AI Autopilots eliminate the need for complicated setup and calibration.

Once Evolution is installed, getting started is as easy as switching the autopilot on.

Thanks to the intelligent EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments.

This innovative breakthrough in autopilot intelligence enables Evolution autopilots to perceive their environment and then instantly calculate and evolve steering commands to maximize performance.

The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

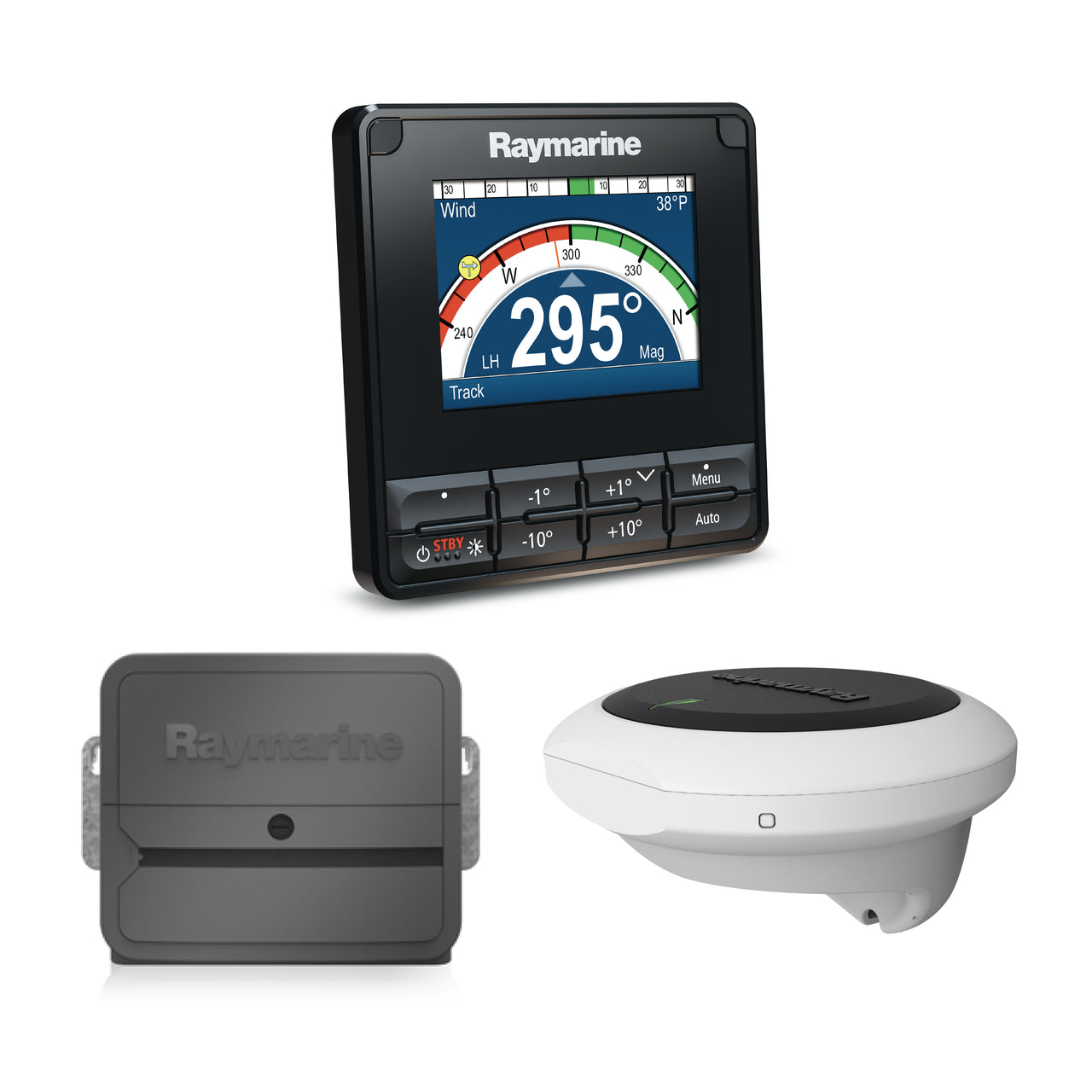

EV-400 Sail Pack Includes:

EV-1 Sensor Core

ACU-400 Actuator Control Unit

p70 Control Head

Evolution Cabling Kit

Features:

EV-1 Sensor Core

Designed for Evolution mechanical and hydraulic autopilot systems

SeaTalk ng Networking

Enables a single cable connection for power and data to the Evolution ACU and extended SeaTalk ng and NMEA 2000 Networks

ACU-400

Delivers reliable autopilot drive power

Provides power to the SeaTalk ng bus

Includes Rudder Reference Indicator M81105

Connections:

Rudder reference sensor

Sleep Switch

Power

Drive Motor

Drive clutch

Ground

Digital Input / Output (DIO)

p70s Autopilot Control Head (Sail)

Push-button operation controller designed primarily for sailboats

Advanced LED backlighting = low power consumption, vibrant color and contrast

Wide horizontal, vertical angles ensure the display can be seen clearly from acute positions

Features Lighthouse user interface and start-up wizard to configure quickly and easily

Evolution Cabling Kit - Kit contains:

(1) SeaTalk ng Power Cable (0.4m)

(1) SeaTalk ng Backbone Cable (5m)

(1) SeaTalk ng Spur Cable (0.4m)

(1) SeaTalk ng 5-way Connector Block

(2) SeaTalk ng T-piece Connectors

(2) SeaTalk ng Terminators
