Part #
T70157
$5,726.99 CAD
Usually Ships in 1-2 Weeks

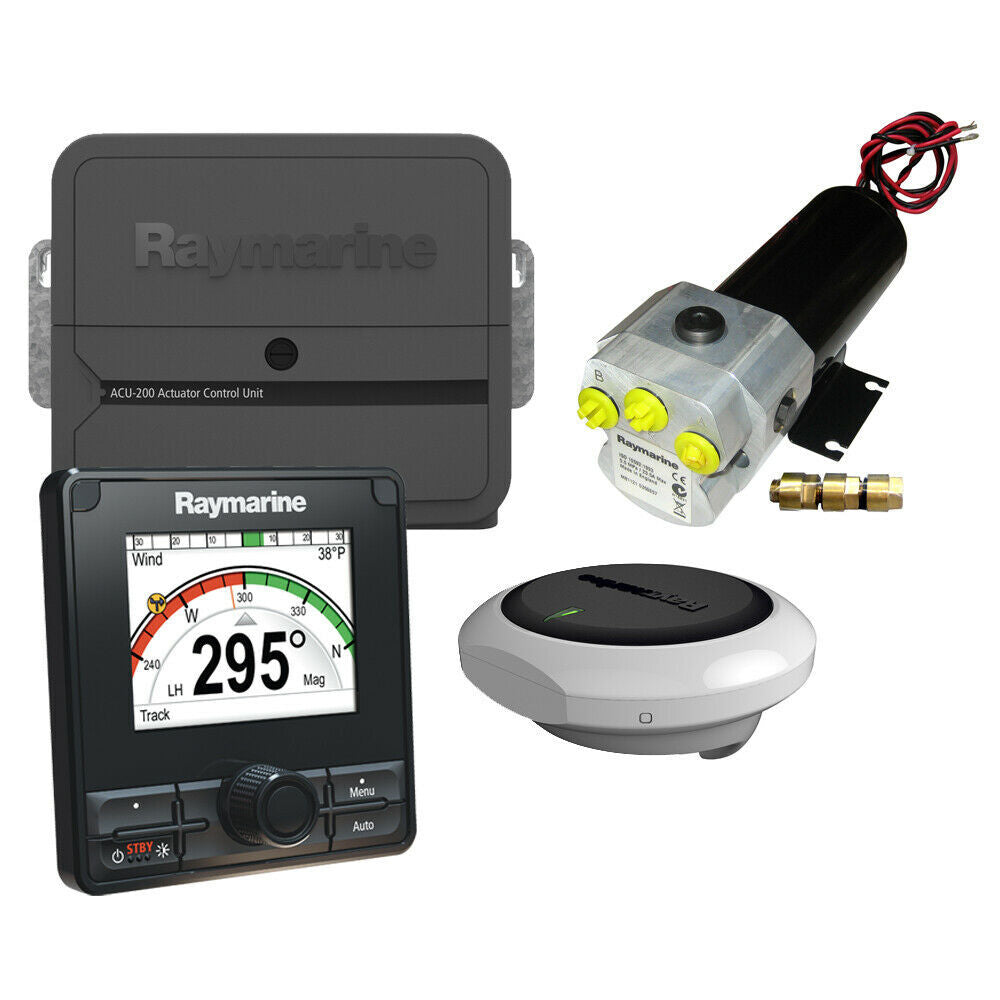

Raymarine EV-200 Autopilot Kit for Powerboat including Type 1 Hydraulic Pump T70157
Designed for simplicity, Evolution AI Autopilots eliminate the need for complicated set up and calibration. Once Evolution is installed, getting started is as easy as switching the autopilot on. Thanks to the intelligent EV Sensor Core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments.
This innovative breakthrough in autopilot intelligence enables Evolution autopilots to perceive their environment and then instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.
The innovative EV-200 Hydraulic Pack is ideal for Mid-Sized Power vessels. An 80cc-230cc (4.9in³ - 14in³) Type 1 Hydraulic Pump is included. Displacement of the boat does not apply here since the pump unit is matched to the ram capacity of the steering system
EV-200 Hydraulic Pack Includes:
EV-1 Sensor Core
ACU-200 Actuator Control Unit
p70R Autopilot Control Head
Type 1 Hydraulic Pump
Evolution Cabling Kit
Features:
EV-1 Sensor Core
Designed for Evolution mechanical and hydraulic autopilot systems
SeaTalk ng Networking
Enables a single cable connection for power and data to the Evolution ACU and extended SeaTalk ng and NMEA 2000 Networks
ACU-200
Delivers reliable autopilot drive power
Provides power to the SeaTalk ng bus
Connections:
Rudder reference sensor
Sleep Switch
Power
Drive Motor
Drive clutch
Ground
p70R Autopilot Control Head
Designed for power craft with push buttons and a rotary control dial
Advanced LED backlighting = low power consumption, vibrant color and contrast
Wide horizontal, vertical angles ensure the display can be seen clearly from acute positions
Features Lighthouse user interface and start-up wizard to configure quickly and easily
Type 1 Hydraulic Pump M81120
4.9³ in -14³ in (80 cc-230 cc)
12 Volt DC
Designed for use on a boat with mechanical steering and secondary steering ram
Contains a precision gear pump and check valve, driven by a servo motor
Evolution Cabling Kit - Kit contains:
(1) SeaTalk ng Power Cable (0.4m)
(1) SeaTalk ng Backbone Cable (5m)
(1) SeaTalk ng Spur Cable (0.4m)
(1) SeaTalk ng 5-way Connector Block
(2) SeaTalk ng T-piece Connectors
(2) SeaTalk ng Terminators
