Raymarine T70156 EV-200 Pilot w/ p70Rs "power" (no drive)

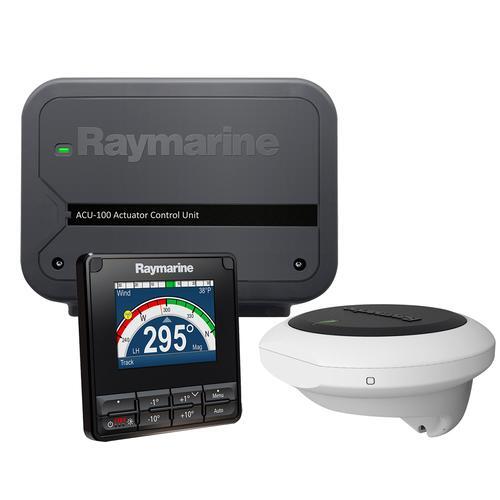

Raymarine Evolution EV-200 Power Autopilot Pack Includes:

EV-1 Sensor Core (E70096)

p70Rs Control Head (E70329)

ACU-200 Actuator Control Unit (E70099)

Evolution Cable Kit (R70160)

Rotary Rudder Reference Transducer (M81105)

Features:

General FeaturesEvolution autopilots eliminate the need for complicated set up and calibration – once Evolution is installed, getting started is as easy as switching on the autopilot

Thanks to the intelligent EV sensor core, autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments

Suitable for mid-size powerboats with hydraulic steering ram capacity 4.9 in 3 - 14 in 3

Requires Type 1 Hydraulic Drive Unit (not included) Consult the Requirements Tab for a Ram Size Chart of popular manufactures cylinder sizes.

EV-1 Sensor CoreDesigned for Evolution mechanical and hydraulic autopilot systems

SeaTalk ng networking enables a single cable connection for power and data to the Evolution ACU-200 and extended SeaTalk ng and NMEA 2000 networks

Combines advanced solid-state sensors with the Evolution autopilot processor in a single easy-to-install housing

Mounted above or below decks, rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing / submersion standards

9-Axis sensor monitors vessel motion in (3) dimensions

Precision monitoring of heading, pitch, roll, and yaw allows the autopilot to evolve instantly as sea conditions and vessel dynamics change

Simple SeaTalk ng connectivity to control head and ACU

Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions

Auto-compensation for onboard magnetic fields and reliable heading accuracy in northern and southern extremes

Fast and reliable heading data for MARPA, radar overlay and heading modes on Raymarine multifunction displays

p70Rs Control HeadCombination of rotary dial and push-button controls designed for powerboats

New LightHouse™ user interface is easy to learn and use

Start-up wizard helps you configure the pilot quickly and easily

Wide 160° horizontal and vertical viewing angles

Advanced LED backlighting offers low power consumption, and delivers vibrant color and contrast

Anti-reflective coating for improved visibility in bright sunlight

Simple system and group dimming / illumination

Supported autopilot modes include Auto, Standby, Pattern, Track, Wind Vane, Power Steer and Jog Steer

Support for multiple data sources

SeaTalk ng / NMEA 2000 and SeaTalk 1 connectivity (no bridging required)

ACU-200 Actuator Control UnitDelivers reliable autopilot drive power and provides power to the SeaTalk ng bus

Supports Type 1 Raymarine hydraulic, linear and rotary mechanical drives

Provides powerful and secure interface between steering systems and the EV-1 course computer and 9-axis sensor

Evolution SeaTalk ng Cable Kit includes:(1) SeaTalk ng power cable (0.4m)

(1) SeaTalk ng backbone cable (5m)

(1) SeaTalk ng spur cable (0.4m)

(1) SeaTalk ng 5-way connector block

(2) SeaTalk ng T-piece connector

(2) SeaTalk ng terminator

Specifications:

Raymarine Part No. T70156

EV-1 Sensor Core (E70096)Nominal Supply Voltage: 12 Volt DC

Operating Voltage Range: 10.8 - 15.6 Volt DC

Power Consumption: 30 mA

Sensors:3-Axis digital accelerometer

3-Axis digital compass

3-Axis gyro digital angular rate sensor

Data Connections: SeaTalk ng

Waterproof Rating: IPX6

Dimensions: 5.5" W x 5" H x 5" D

p70Rs Control Head (E70329)Nominal Supply Voltage: 12 Volt DC

Operating Voltage Range: 9 - 16 Volt DC

Screen size 3.5"

Display Sunlight readable optically bonded LCD

Resolution 320 x 240 QVGA

Colours 16 bit colour (64K colours)

Colour Palettes Four colour pallettes - two day, inverse and red / black

LCD Brightness 1200 nit

Power consumption 1.6 Watts

Connections SeaTalk & SeaTalkng compliant with NMEA2000 marine networks

Operating temperature -025ºC to 55ºC (-13ºF to 131ºF)

Storage temperature -030ºC to 70ºC (-22ºF to 158ºF)

Relative humidity 93% max

Waterproofing IPX6

Conformance Europe 2004/108/EC | Australia and New Zealand C-Tick compliance level 2

ACU-200 Actuator Control Unit (E70099)Drive Current Output: Max. continuous 15 Amp

Drive Clutch Output: Up to 2.0 Amp continuous, selectable between 12 / 24 Volt DC

Nominal Supply Voltage: 12 or 24 Volt DC

Operating Voltage Range: 10.8 - 31.2 Volt DC

Power Consumption (standby) - Main Power Supply: 300 mA @ 12 / 24 Volt DC

Power Consumption (standby) - SeaTalk ng : 20 mA @ 12 Volt DC

Data Connections: SeaTalk ng

Connections: Rudder reference sensor (Included), sleep switch, power, drive motor, drive clutch, ground

Waterproof Rating(s): Drip resistant
