Dimensions
Length: 0.0in
Width: 0.0 in
Height: 0.0 in
Weight: 0.0 lbs
Specifications
Document Downloads
No PDF Files
Part #
000-13788-001
$5,097.99 CAD
Usually Ships in 2-4 Weeks

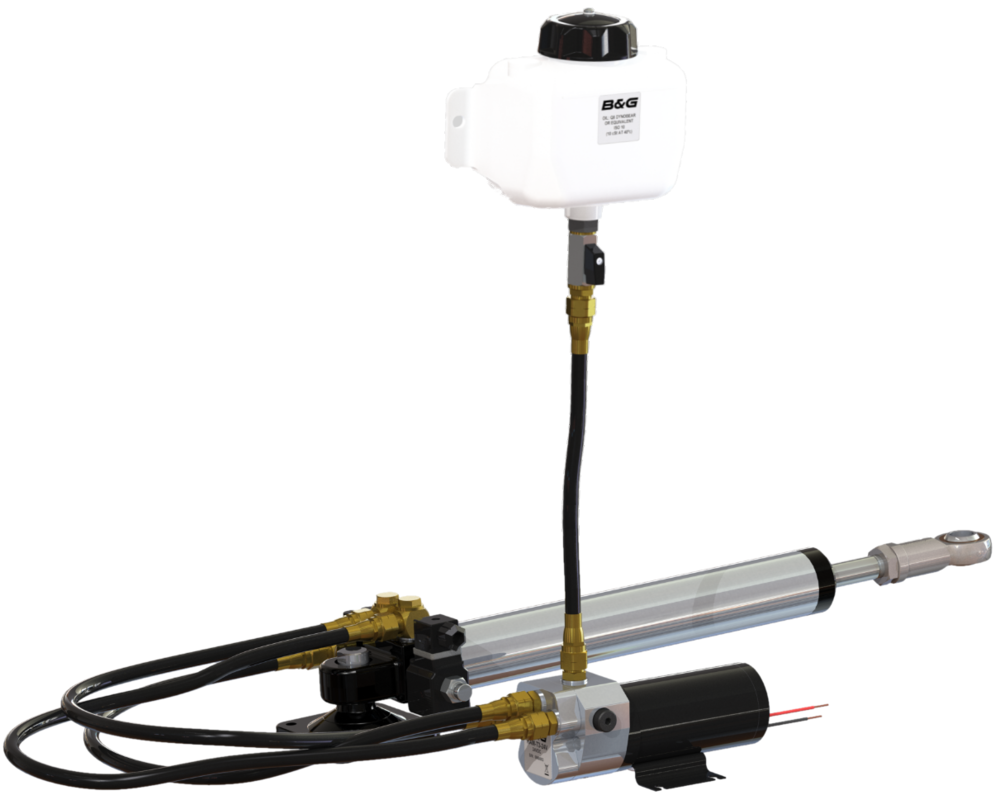

T3 drives have a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder
Always remember to use the fully laden displacement of your boat when selecting a pilot.Typically a yacht fully provisioned with the water and fuel tanks full, can be as much as 20% above the designed displacement.
If your boat falls between two pilot types, choose the larger pilot type - an under rated pilot may not be able to perform adequately when you need it most.
If in doubt, please check with an authorised B&G Dealer.
Max Boat Size: 79,000 lbs (36,000 kg)
Stroke: 11.8 in (300 mm)
Hard Over Time: 13 sec
Tiller Arm: 10.11 in (257 mm)
Thrust: 2425 lbs (1100 kg)
Rudder Torque: 623.9 lbs (283 kg)
Required Computer: AC42/NAC-3 - 3/H5000
