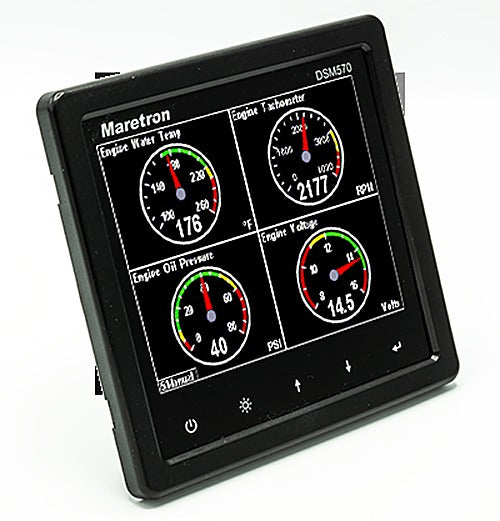

Maretron DSM570-01 5.7" High Bright Color Display Black

Maretron's DSM570 is a high-resolution sunlight viewable color display that allows easy interpretation of NMEA 2000® instrument and navigation data through custom display configurations, featuring an easy-to-use five-key illuminated keypad.

Unlike traditional single-display units, DSM570 users can choose numeric, gauge, or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM570 will directly connect with any NMEA 2000® network and display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.

The DSM570 displays a multitude of information including AC power, battery, depth, engine, environment, fuel management, GPS, heading, navigation, rudder, speed, tanks, time, transmission, weather, wind and more.

Alerts

The DSM570 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM570 is capable of monitoring. Available alert types include:

• High alert

• Low alert

• Data unavailable alert

• On alert

• Off alert

• Circuit breaker tripped alert

• Course alert

• GPS quality alert

• Outside radius alert

• Inside radius alert

• Direction alert

• Timer alert

The DSM570 is capable of sharing alert information with other DSM570 units as well as any DSM410 and N2KView® installations on the network. An alert defined on any device can be acknowledged on any other device on the network. Following is a screenshot of a shallow water alert:

Once the alert appears, you simply press the "Enter" key twice to see the Alert Status screen, shown here:

Maretron's DSM570 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.
