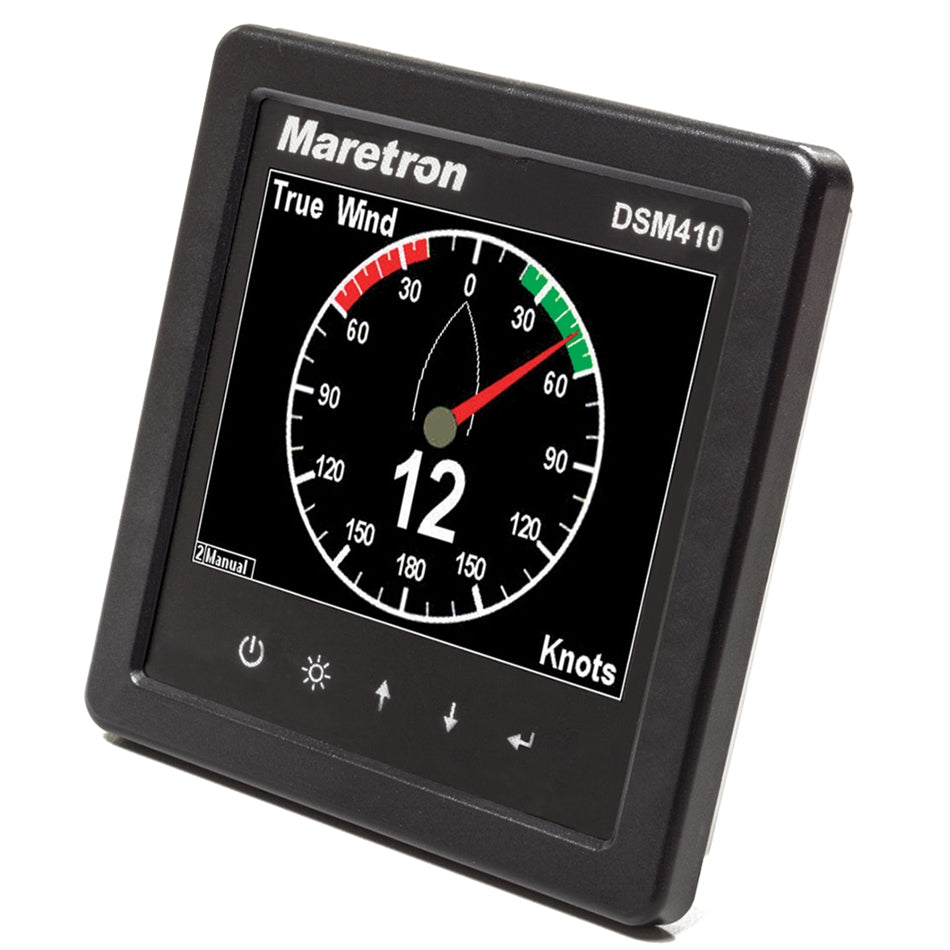

Maretron DSM410-01 4.1" High Bright Color Display Black

Maretron’s DSM410 is a 4.1” high-resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability.

Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM410 will directly connect with any NMEA 2000® network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.

The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, temperature, time, transmission, water makers, weather, wind and more.

Alerts

The DSM410 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM410 is capable of monitoring. Available alert types include:

• High alert

• Low alert

• Data unavailable alert

• On alert

• Off alert

• Circuit breaker tripped alert

• Course alert

• GPS quality alert

• Outside radius alert

• Inside radius alert

• Direction alert

• Timer alert

The DSM410 is capable of sharing alert information with other DSM410 units as well as any DSM250 and N2KView® installations on the network. An alert defined on any device can be acknowledged on any other device on the network. Following is a screenshot of a shallow water alert:

Once the alert appears, you simply press the "Enter" key twice to see the Alert Status screen, shown here:

Maretron's DSM410 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.
