Dimensions
Length: 6.6in
Width: 3.1 in
Height: 13.7 in
Weight: 0.0 lbs
Specifications
Document Downloads
Part #
10-10183-22
$758.99 CAD
Usually Ships in 1-2 Weeks
Eligible for free shipping

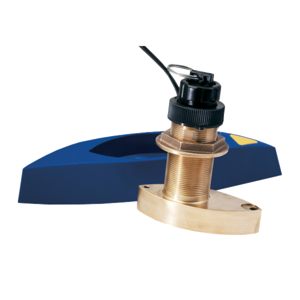

The only thru-hull transducer that offers depth, speed and temperature in one package, this 8-pin 600 W triducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
TRANSDUCER FREQUENCY
50/200 kHz
TRANSDUCER POWER
600 W
TRANSDUCER BEAMWIDTH
45°/12°
TRANSDUCER MAXIMUM DEPTH
800-1,200 ft.
TRANSDUCER CABLE LENGTH
39 ft.
TRANSDUCER DEPTH/SPEED/TEMPERATURE
Depth, Speed and Temperature
TRANSDUCER NUMBER OF PINS
8-pin
TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES
0°-24° degree deadrise
