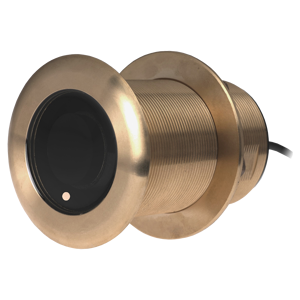

Garmin B60 600W, 50/200 kHz, 12 deg thru-hull

This entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing.

An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.

TRANSDUCER FREQUENCY
50/200 kHz


TRANSDUCER POWER
600 W


TRANSDUCER BEAMWIDTH
45°/12°


TRANSDUCER MAXIMUM DEPTH
800-1,200 ft.


TRANSDUCER CABLE LENGTH
33 ft.


TRANSDUCER DEPTH/SPEED/TEMPERATURE
Depth and Temperature


TRANSDUCER NUMBER OF PINS
8-pin


TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES
8°-15° degree deadrise
