Dimensions
Length: 4.7in
Width: 3.8 in
Height: 0.0 in
Weight: 0.0 lbs
Specifications
Document Downloads
Part #
010-11939-20
$1,658.99 CAD
Usually Ships in 1-2 Weeks
Eligible for free shipping

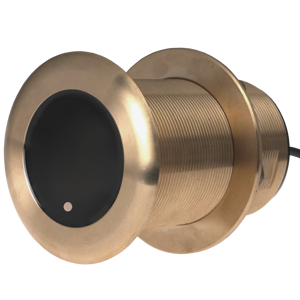

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.
An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 1,700 ft; an operating frequency of 85-135 kHz; a beamwidth of 11-16 degrees; and a 0 to 7 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
TRANSDUCER FREQUENCY
CHIRP (85-135 kHz)
TRANSDUCER POWER
1 kW
TRANSDUCER BEAMWIDTH
11°-16°
TRANSDUCER MAXIMUM DEPTH
1,500 ft.
TRANSDUCER CABLE LENGTH
39 ft.
TRANSDUCER DEPTH/SPEED/TEMPERATURE
Depth and Temperature
TRANSDUCER NUMBER OF PINS
8-pin
TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES
0°-7° degree deadrise
