Dimensions
Length: 3.75in
Width: 2.0 in
Height: 0.0 in
Weight: 0.0 lbs
Specifications
Document Downloads

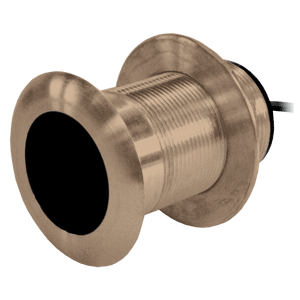

This bronze thru-hull mount transducer performs well at high speeds.
An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Do not use on metal hulls.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
TRANSDUCER FREQUENCY
50/200 kHz
TRANSDUCER POWER
600 W
TRANSDUCER BEAMWIDTH
45°/12°
TRANSDUCER MAXIMUM DEPTH
800-1,200 ft.
TRANSDUCER CABLE LENGTH
33 ft.
TRANSDUCER DEPTH/SPEED/TEMPERATURE
Depth and Temperature
TRANSDUCER NUMBER OF PINS
8-pin
TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES
0°-7° degree deadrise
